Розподільчі блоки

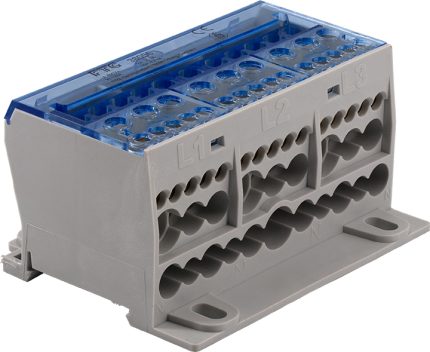

38056 Distribution block 4 pole grey 125A for 3x Phase and 1x Neutral
The PDB for copper conductors can be used for four-pole applications or as a three-pole application with neutral conductor. IEC: 125A Ipk: 25 k Icw: 4,2 kA multi wire Phase: 1 x 6 - 35 sqmm, 2 x 4 - 16 sqmm and 5 x 1,5 - 6 sqmm Neutral: 1 x 6 - 35 sqmm, 6 x 4 - 16 sqmm and 4 x 1,5 - 10 sqmm with sleeve Phase: 1 x 6 - 25 sqmm, 2 x 4 - 10 sqmm and 5 x 1,5 - 6 sqmm Neutral: 1 x 6 - 25 sqmm, 6 x 4 - 10 sqmm and 4 x 1,5 - 6 sqmm max. operating current IEC 60947-7-1: 690 V, eng

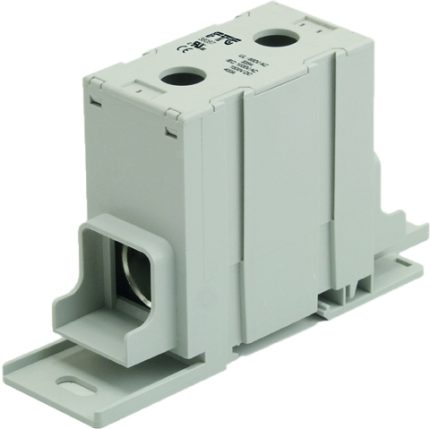

38057 Distribution block 1 pole grey up to 185sqmm up to 400A (Cu) 2 connections
The one pole power distribution block is compatible for copper or aluminium conductors bis 185sqmm. IEC: 400 A Cu | 300 A Al | UL: 335 A Cu multi wire 1 x 16 - 185 sqmm | 1 x 6 - 400 kcmil 1 x 16 - 185 sqmm | 1 x 6 - 400 kcmil with sleeve 1 x 16 - 150 sqmm | 1x 6 - 3350 kcmil 1 x 16 - 150 sqmm | 1x 6 - 3350 kcmil max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

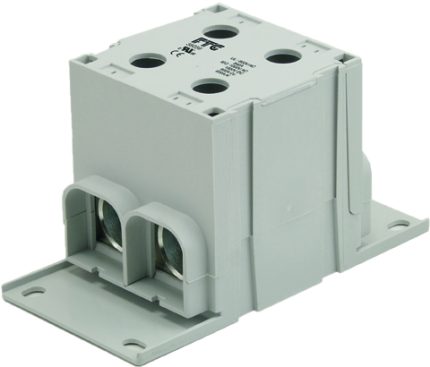

38059 Distribution block 1 pole grey up to 240sqmm up to 800A (Cu) 4 connections
The one pole power distribution block is compatible for copper or aluminium conductors bis 240sqmm. IEC: 800 A Cu | 630 A Al | UL: 840 A Cu multi wire 2 x 25 - 240 sqmm | 2 x 4 - 600 kcmil 2 x 25 - 240 sqmm | 2 x 4 - 600 kcmil with sleeve 2 x 25 - 185 sqmm | 2 x 4 - 500 kcmil 2 x 25 - 185 sqmm | 2 x 4 - 500 kcmil max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

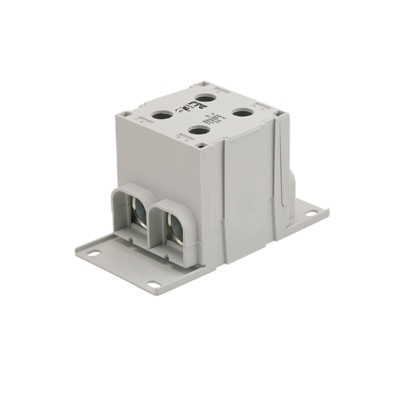

38060 Distribution block 1 pole grey up to 240sqmm 800A (Cu) 4 connections
The one pole power distribution block is out of zinc-plated copper and is compatible for copper and aluminium cable. IEC: 800 A Cu | 630 A Al UL: 840 A Cu. Cross sections: multi wire 2 x 25 - 240 sqmm | 2 x 4 - 600 kcmil 2 x 25 - 240 sqmm| 2 x 4 - 600 kcmil with sleeve 2 x 25 - 185 sqmm | 1 x 4 - 500 kcmil 2 x 25 - 185 sqmm | 1 x 4 - 500 kcmil. Max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized., eng

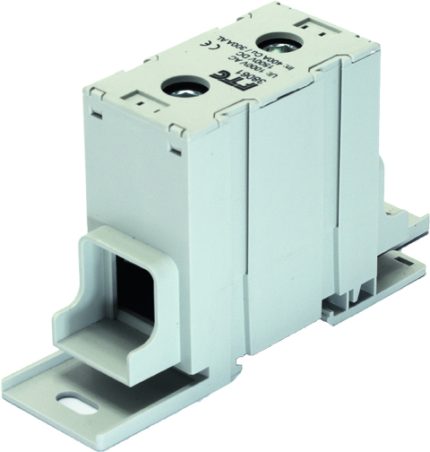

38061 Distribution block 1 pole grey up to 240sqmm up to 400A (Cu) 2 connections
The one pole power distribution block is compatible for copper or aluminium conductors bis 185sqmm. IEC: 400 A Cu | 300 A Al multi wire 1 x 35 - 240 sqmm | 9 x 4 - 20 x 10 mm 1 x 35 - 240 sqmm | 9 x 4 - 20 x 10 mm with sleeve 1 x 16 - 185 sqmm 1 x 16 - 185 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC , eng
38062 Distribution block 1 pole grey up to 300sqmm up to 800A (Cu) 4 connections
The one pole power distribution block is compatible for copper or aluminium conductors bis 300sqmm. IEC: 800 A Cu | 630 A Al multi wire 1 x 35 - 300 sqmm | 9 x 4 - 50 x 10 mm 2 x 35 - 300 sqmm | 9 x 4 - 24 x 10 mm with sleeve 1 x 25 - 240 sqmm 2 x 25 - 240 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC, eng

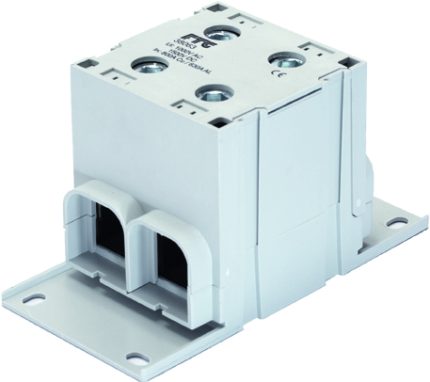

38063 Distribution block 1 pole grey up to 300sqmm up to 800A (Cu) 4 connections
The one pole power distribution block is compatible for copper or aluminium conductors bis 300sqmm. IEC: 800 A Cu | 630 A Al multi wire 2 x 35 - 300 sqmm | 9 x 4 - 24 x 10 mm 2 x 35 - 300 sqmm | 9 x 4 - 24 x 10 mm with sleeve 2 x 25 - 240 sqmm 2 x 25 - 240 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC, eng

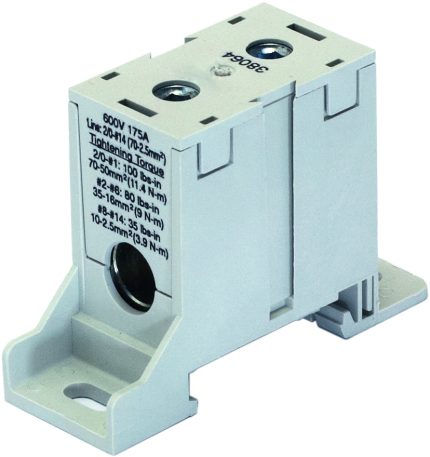

38064 Distribution block 1 pole grey up to 70sqmm up to 175A (Cu) 2 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu multi wire 1 x 2,5 - 70 sqmm | 1 x 10 - 2/0 AWG 1 x 2,5 - 70 sqmm | 1 x 10 - 2/0 AWG with sleeve 1 x 2,5 - 50 sqmm | 1 x 2 - 1 AWG 1 x 2,5 - 50 sqmm | 1 x 2 - 1 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

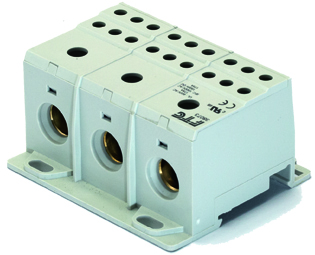

38073 Distribution block 3 pole grey 300A for 7 copper conductors
The three pole power distribution block offers space for 7 copper conductors.IEC: 175 A Cu | UL: 175 A Cu | max. 300 A multi wire 1 x 10 - 70sqmm | 1 x 8 - 2/0 AWG and 6 x 2,5 - 16sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 50sqmm | 1 x 8 - 1/0 AWG and 6 x 2,5 - 10 sqmm | 6 x 14 - 6 AWG max. operating current IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL Recognized. , eng

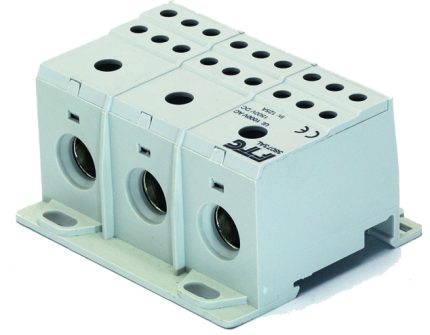

38073AL Distribution block 3 pole grey up to 70sqmm 300A 7 connections
The three pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu max. 300 A multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 6 x 2,5 - 10 sqmm | 6 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38074 Distribution block 1 pole grey 300A 11 connections
The one pole power distribution block is compatible for copper cables. IEC: 175 A | UL: 175 A | max. 300 A multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38074AL Distribution block 1 pole grey up to 70sqmm 300A 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu max. 300 A. Cross sections: multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG, with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG. Max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized. , eng
