Розподільчі блоки
38074N Distribution block 1 pole blue 300A 11 connections
The one pole power distribution block is compatible for copper cables. IEC: 175 A | UL: 175 A | max. 300 A multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38074PE Distribution block 1 pole green 300A 11 connections
The one pole power distribution block is compatible for copper cables. IEC: 175 A | UL: 175 A | max. 300 A multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

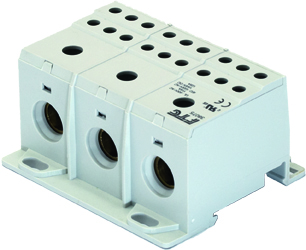

38075 Distribution block 3 pole grey 170 A for 7 copper conductors
The three pole power distribution block offers space for 7 copper conductors. IEC: 125 A Cu | UL: 115 A Cu | max. 170 A multi wire 1 x 10 - 35sqmm | 1 x 8 - 2 AWG and 6 x 2,5 - 16sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 35sqmm | 1 x 8 - 2 AWG and 6 x 2,5 - 10sqmm | 6 x 14 - 6 AWG max. operating current IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL Recognized. , eng

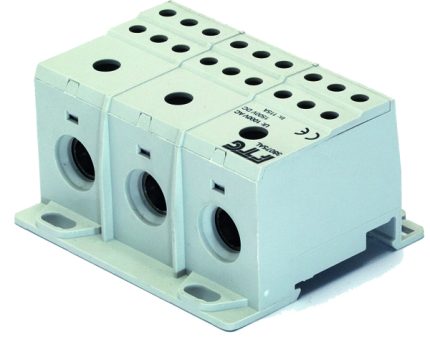

38075AL Distribution block 3 pole grey up to 35sqmm 170A 7 connections
The three pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu max. 170 A. Cross sections: multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 6 x 2,5 - 10 sqmm | 6 x 14 - 6 AWG. Max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized., eng
38076 Distribution block 1 pole grey 170A 11 connections
The one pole power distribution block is compatible for copper cables. IEC: 125 A | UL: 115 A | max. 170 A multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38076AL Distribution block 1 pole grey up to 35sqmm 170A 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu max. 170 A. Cross sections: multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG. Max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38076ALN Distribution block 1 pole blue up to 35sqmm 170A 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu max. 170 A. Cross sections: multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG. Max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized. , eng
38076N Distribution block 1 pole blue 125A 11 connections
The one pole power distribution block is compatible for copper cables. IEC: 125 A | UL: 115 A | max. 170 A multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38076PE Distribution block 1 pole green 170A 11 connections
The one pole power distribution block is compatible for copper cables. IEC: 125 A | UL: 115 A | max. 170 A multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38083 Distribution block 1 pole grey 125A 5 connections

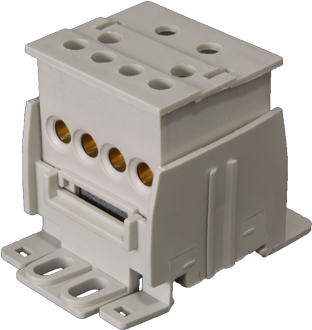

38084 Distribution block 1 pole grey 250A 7 connections

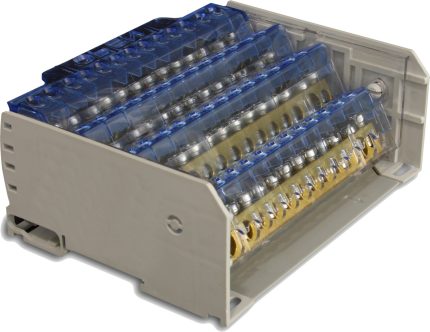

38101 Distribution block 4 pole grey 125A for 13 copper conductors
The four pole power distribution block offers space for 13 copper conductors. IEC: 125A Ipk: 25 k Icw: 4,2 kA. Cross sections: multi wire 2 x 6 - 35 sqmm, 2 x 2,5 - 16 sqmm and 9 x 2,5 - 16 sqmm with sleeve 2 x 6 - 25 sqmm, 2 x 1,5 - 16 sqmm and 9 x 1,5 - 10 sqmm max. operating current IEC 60947-7-1: 690 V, eng
