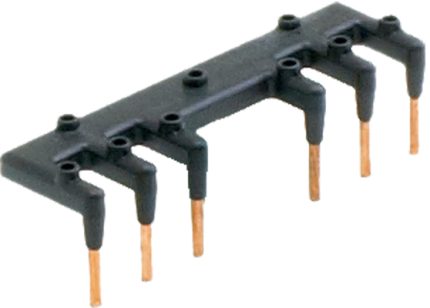

Parallel wiring in Eurovario design for small contactors: Eaton DIL EEM– EM 12, Siemens 3RT1015– 3RT1017, Telemecanique / Schneider Electric LC1– K07– LC1– K12, GE Power Controls LS07 oder WEG CW07 / CWC07 bis CWC016 contactor width: 45mm contactor size: 2 x 3kW Ue: 500V Iu: 63A, eng

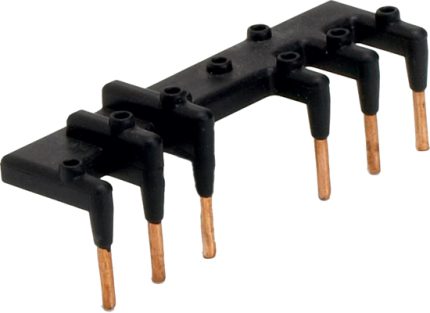

Parallel wiring in Eurovario design for small contactors: Eaton DIL EEM– EM 12, Siemens 3RT1015– 3RT1017, Telemecanique / Schneider Electric LC1– K07– LC1– K12, GE Power Controls LS07 oder WEG CW07 / CWC07 bis CWC016 contactor width: 45mm contactor size: 3 x 3kW Ue: 500V Iu: 63A, eng

Parallel wiring in Eurovario design for small contactors: Eaton DIL EEM– EM 12, Siemens 3RT1015– 3RT1017, Telemecanique / Schneider Electric LC1– K07– LC1– K12, GE Power Controls LS07 oder WEG CW07 / CWC07 bis CWC016 contactor width: 45mm contactor size: 8 x 3kW Ue: 500V Iu: 63A, eng

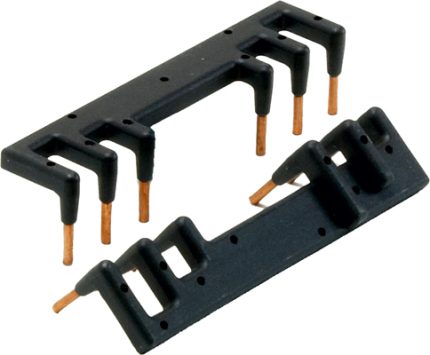

Reversing wiring for Eaton DIL 00M– DIL 0 AM | ABB A9– A12– A18 | Telemecanique / Schneider Electric LC1– D09 bis – LC1– D18 | WEG CWM9– CWM12–CWM18. The bsubar has the contactor width: 45mm with a size of: 4 – 5,5 – 7,5kW. The maximum operating voltage and current is Ue: 690V/Iu: 25A., eng

Reversing wiring for Eaton DIL0M– DIL 00 AM | Siemens 3RT1024– 3RT1026 | Telemecanique / Schneider Electric LC1– D09 bis LC1– D38 | WEG CWM25, contactor width: 45mm, contactor size: 11 – 15 – 18,5kW, Ue: 690V Iu: 40A, eng

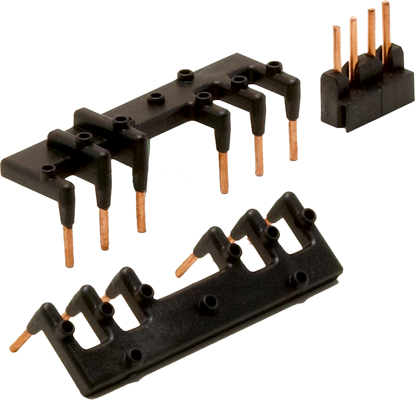

Star-delta wiring for: Eaton DIL0M– DIL 0 AM | Siemens 3RT1024– 3RT1026 | Telemecanique / Schneider Electric LC1– D09 bis LC1– D38 | WEG CWM25 contactor width: 45mm contactor size: 11 – 15 – 18,5kW Ue: 690V Iu: 40A, eng
