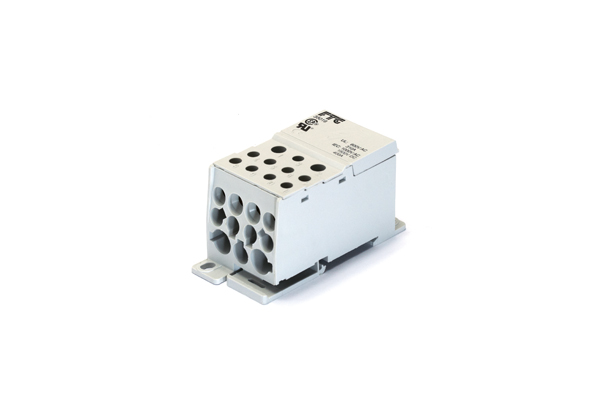

38019 Distribution block 1 pole grey 500A 12 connections
Код товара: 135494
1753,70 грн з ПДВ
The one pole power distribution block is compatible for copper cables. IEC: 400 A | UL: 310A | max. 500 A multi wire 1 x 95 – 185 sqmm | 3/0 – 350 kcmil 2 x 2,5 – 35 sqmm | 2 x 14 – 2 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG with sleeve 1 x 95 – 150 sqmm | 1 x 3/0 – 300 kcmil 2 x 2,5 – 25 sqmm | 2 x 14 – 4 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
| Виробник |
|---|
The one pole power distribution block is compatible for copper cables. IEC: 400 A | UL: 310A | max. 500 A multi wire 1 x 95 – 185 sqmm | 3/0 – 350 kcmil 2 x 2,5 – 35 sqmm | 2 x 14 – 2 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG with sleeve 1 x 95 – 150 sqmm | 1 x 3/0 – 300 kcmil 2 x 2,5 – 25 sqmm | 2 x 14 – 4 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
International product number (GTIN): 4018841599818
Universal product code (UPC):
Alternative product number: K00 AUX38019
Product ID of the manufacturer: 38019
Manufacturer type description: K00 AUX38019
Ключові слова: one pole power distribution block one pole distribution block one pole distribution terminal terminal one phase one pole terminal distribution block comapct power distribution block terminal block
Special product status:
Classification system: ETIM-7.0
Group reference: EC001894
