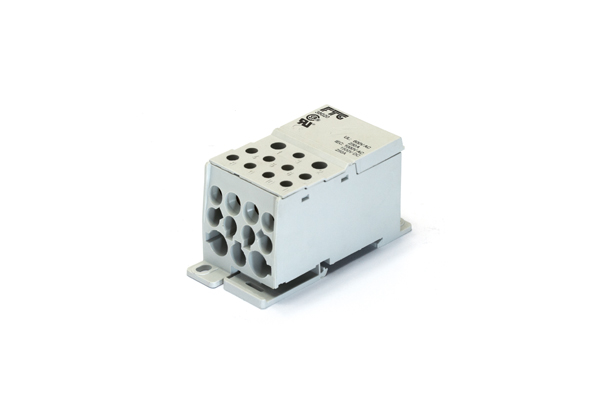

38020 Distribution block 1 pole grey 425A 12 connections
Код товара: 135491
1661,40 грн з ПДВ
The one pole power distribution block is compatible for copper cables. IEC: 250 A | UL: 230A | max. 425 A multi wire 1 x 35 – 120 sqmm | 1 x 2 – 4/0 AWG 2 x 2,5 – 35 sqmm | 2 x 14 – 2 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG with sleeve 1 x 35 – 95 sqmm | 1 x 2 x 3/0 AWG 2 x 2,5 – 25 sqmm | 2 x 14 – 4 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
| Виробник |
|---|
The one pole power distribution block is compatible for copper cables. IEC: 250 A | UL: 230A | max. 425 A multi wire 1 x 35 – 120 sqmm | 1 x 2 – 4/0 AWG 2 x 2,5 – 35 sqmm | 2 x 14 – 2 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG with sleeve 1 x 35 – 95 sqmm | 1 x 2 x 3/0 AWG 2 x 2,5 – 25 sqmm | 2 x 14 – 4 AWG 5 x 2,5 – 16 sqmm | 5 x 14 – 6 AWG 4 x 2,5 – 10 sqmm | 4 x 14 – 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
International product number (GTIN): 4018841599771
Universal product code (UPC):
Alternative product number: K00 AUX38020
Product ID of the manufacturer: 38020
Manufacturer type description: K00 AUX38020
Ключові слова: one pole power distribution block one pole distribution block one pole distribution terminal terminal one phase one pole terminal distribution block comapct power distribution block terminal block
Special product status:
Classification system: ETIM-7.0
Group reference: EC001894
