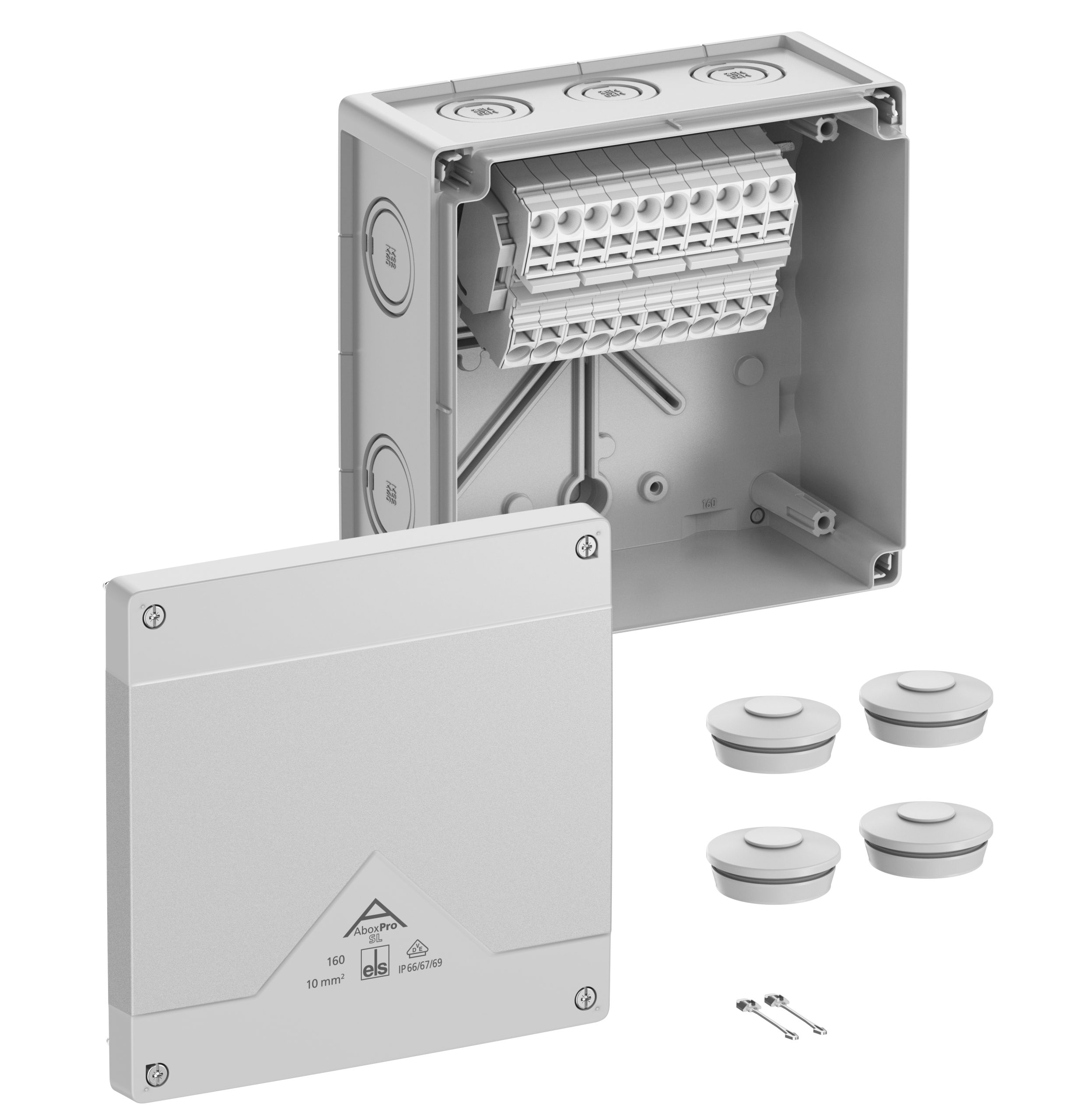

41044001 Abox Pro SL-10²
Код товара: 88962
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 10², IK09, Protection class II, Ui 690V AC, Ui 690V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66/IP67/IP69, nominal cross-section 10mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32/M40, (2 rear, 10 side), internal fixing points, with screwless terminals, for installation in industrial environments and unprotected outdoor areas, grey, In=57 A, with raised screwless terminal block Wago 2010-1201, 5-pole, max. nominal cross-section in accordance with DIN EN 60998: 10mm², clampable cross-sections per pole: 4 x 0.5 to 16mm² rigid/flexible Cu
Dimensions: 182 x 182 x 90mm
Accessories supplied: 4 double membrane seals IP66 M40 sealing range 17-28mm, cover retainer
International product number (GTIN): 4013902663644
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 41044001
Manufacturer type description: Abox Pro SL-10²
Ключові слова: Außeninstallation, Exterior installation, Schraubenlos, Screwless, TopJob S, TopJob S, IP69, IP69, Außenbereich, Outdoor applications
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
