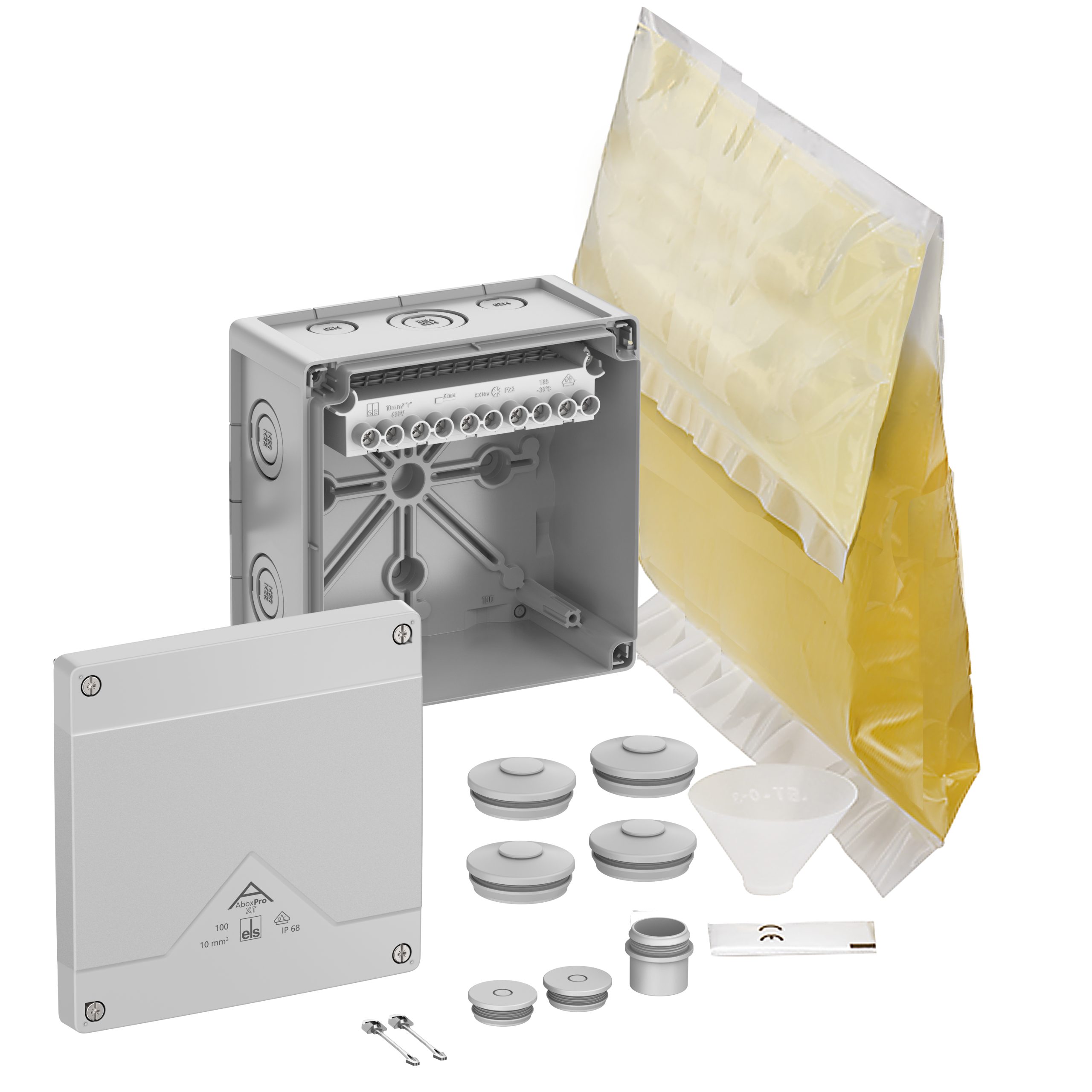

41045001 Abox Pro XT-10²

Junction box, protection class IP68, nominal cross-section 10mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, with screw terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads, for installations in the industrial environment and unprotected outside areas, grey, In=57 A, with raised screw terminal block, 5-pole- 10mm², clampable cross-sections per pole: 4 x 2.5mm², 4 x 4mm², 4 x 6mm², 4 x 10mm² rigid Cu/flexible with wire-end ferrule
Dimensions: 152 x 152 x 85mm
Accessories supplied: 4 double membrane seals IP66 M32 sealing range 13-21mm, 2 sealing plugs M20, 1 attachment bush M20, cover retainer, 1 cast resin bag GHB Pro 4 with filling funnel and disposable gloves
