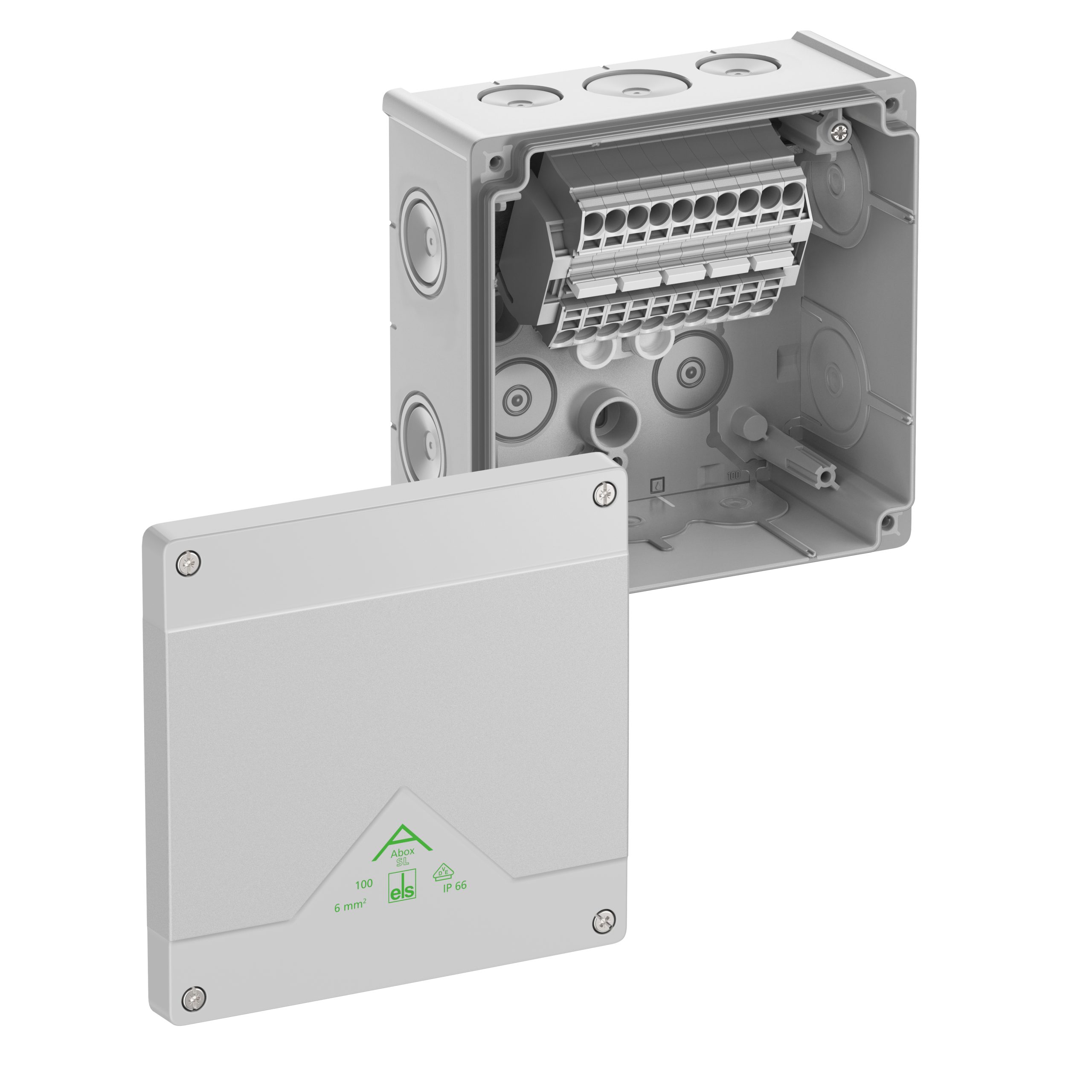

80644001 Abox SL-6²
Код товара: 91339
Ціна за запитом
Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 6mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8-28mm, (2 rear, 10 side), internal fixing points, with screwless terminals for standard indoor and protected outdoor installations, grey, In=41 A, with raised screwless terminal block Wago 2006-1201, 5-pole, max. nominal cross-section in accordance with DIN EN 60998: 6mm², clampable cross-sections per pole: 4 x 0.5 to 10mm² rigid/flexible Cu
Dimensions: 152 x 152 x 80mm
International product number (GTIN): 4013902660780
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80644001
Manufacturer type description: Abox SL-6²
Ключові слова: Schraubenlos, Screwless, TopJob S, TopJob S, abx, abx, aox, aox, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
