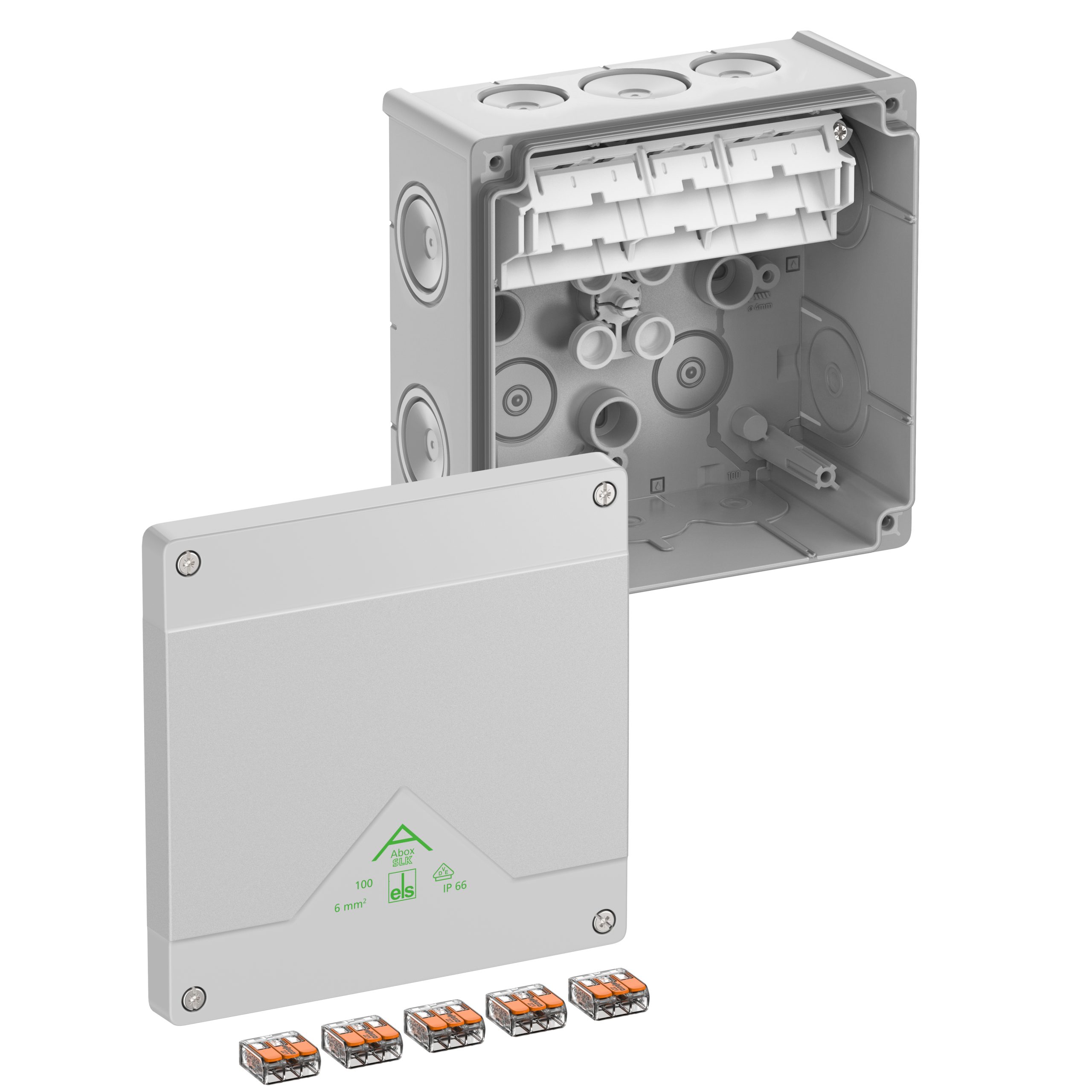

80647001 Abox SLK-6²
Код товара: 91342
Ціна за запитом
Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 450V AC, Ui 450V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 6mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8-28mm, (2 rear, 10 side), internal fixing points, with screwless terminals for standard indoor and protected outdoor installations, grey, In=41 A, with 5 raised, screwless 3-wire terminals, type Wago 221-613-6mm², clampable cross-sections per pole: 3 x 0.2 to 6mm² rigid/flexible Cu
Dimensions: 152 x 152 x 80mm
International product number (GTIN): 4013902660759
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80647001
Manufacturer type description: Abox SLK-6²
Ключові слова: Schraubenlos, Screwless, Wago 221, Wago 221, abx, abx, aox, aox, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
