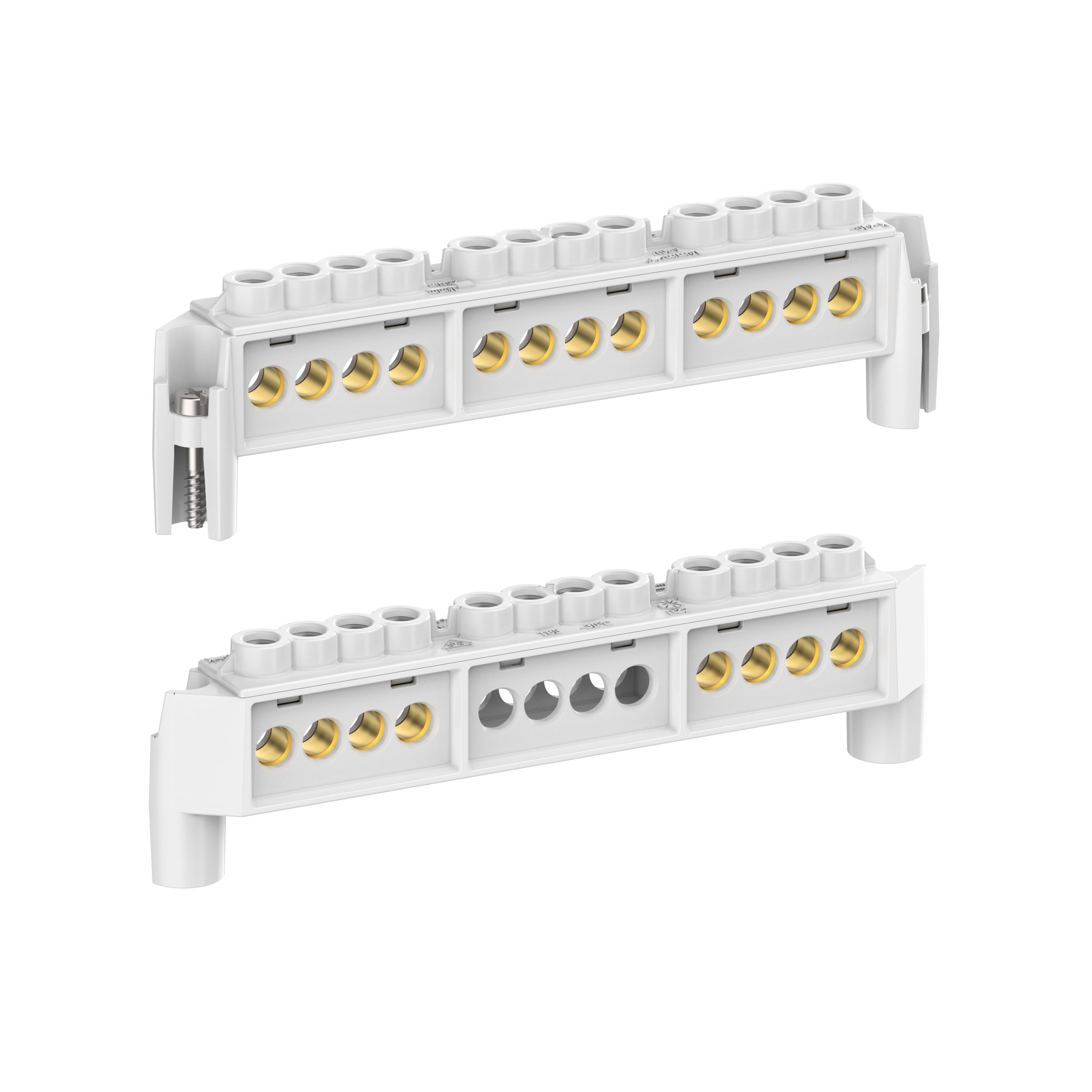

89641601 Abox 160 KLS-16²
Код товара: 91774
Ціна за запитом
Terminal block, grey, Rated insulation voltage 690V AC, Rated insulation voltage 690V DC
| Виробник |
|---|
Connecting terminal in accordance with DIN EN 60998 (VDE 0613), Ui=690V. For assembly in junction boxes Abox/Abox Pro from 2024 onwards., raised screw terminal block for Abox/Abox Pro 160, 5-pole-16mm², In = 101 A, clampable cross-sections per pole: 12 x 4mm², 8 x 6mm², 4 x 10mm², 4 x 16mm², 4 x 25mm² Cu rigid/flexible with wire-end ferrule
Dimensions: 18 x 140 x 43mm
International product number (GTIN): 4013902677337
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 89641601
Manufacturer type description: Abox 160 KLS-16²
Ключові слова: Abox 2024, Abox 2024, Abzweigklemme, branch terminal, Klemme, Terminal, Verbindungsklemme, Connecting terminal, Klemmen, Terminals
Special product status:
Classification system: ETIM-9.0
Group reference: EC001284
