Розподільчі блоки

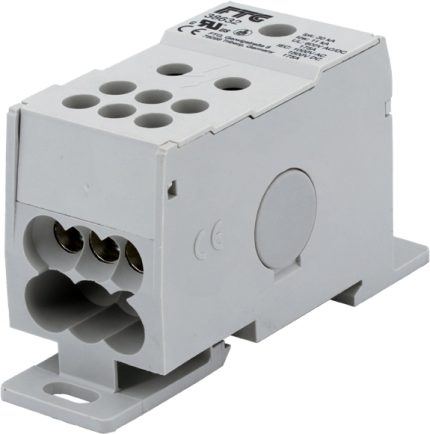

38632 Distribution block 1 pole grey up to 70sqmm up to 175A (Cu) 7 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu | 135 A Al multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 6 x 2,5 - 25 sqmm | 6 x 14/4 AWG [Cu 16 x 5 mm max.] with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 6 AWG [Cu 16 x 5 mm max.] max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38632N Distribution block 1 pole blue up to 70sqmm up to 175A (Cu) 7 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu | 135 A Al multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 6 x 2,5 - 25 sqmm | 6 x 14/4 AWG [Cu 16 x 5 mm max.] with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 6 AWG [Cu 16 x 5 mm max.] max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

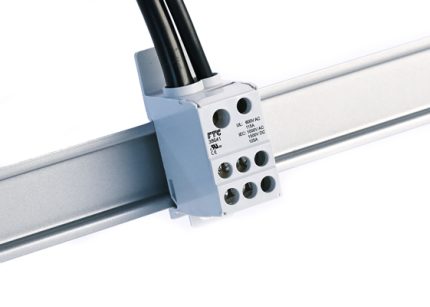

38641 Distribution block 1 pole grey up to 35sqmm 170A 8 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu | 90 A Al max. 170 A multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 1 x 2,5 - 25 sqmm | 1 x 14 - 4 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 1 x 2,5 - 16 sqmm | 1 x 14 - 6 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38641N Distribution block 1 pole blue up to 35sqmm 170A 8 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu | 90 A Al max. 170 A multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 1 x 2,5 - 25 sqmm | 1 x 14 - 4 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 1 x 2,5 - 16 sqmm | 1 x 14 - 6 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

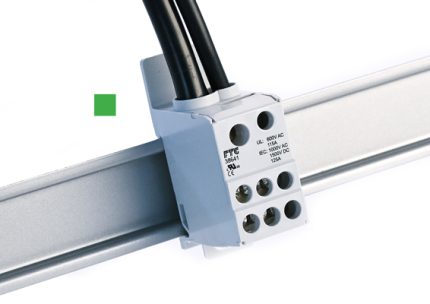

38641PE Distribution block 1 pole green up to 35sqmm 170A 8 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu | 90 A Al max. 170 A multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 1 x 2,5 - 25 sqmm | 1 x 14 - 4 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 1 x 2,5 - 16 sqmm | 1 x 14 - 6 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

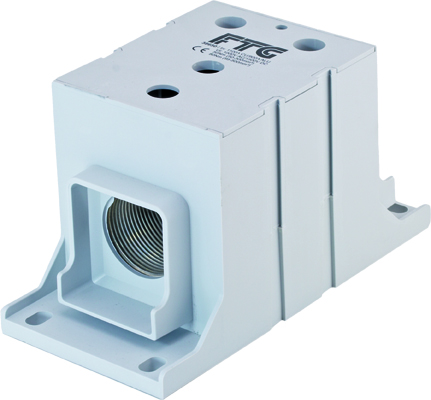

38650 Distribution block 1 pole grey up to 500sqmm up to 800A (Cu) 4 connections
The one pole power distribution block is compatible for copper or aluminium conductors bis 500sqmm. IEC: 800 A Cu | 630 A Al multi wire 1 x 95 - 500 sqmm 2 x 50 - 300 sqmm 1 x 1,5 - 16 sqmm with sleeve 1 x 95- 500 sqmm 2 x 50 - 240 sqmm 1 x 1,5 - 10 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC, eng
38673 Distribution block 3 pole grey up to 175A (Cu) 7 connections Cu/Al
The three pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu | 135 A Al multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 6 x 2,5 - 10 sqmm | 6 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38674 Distribution block 1 pole grey up to 70sqmm up to 175A (Cu) 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu | 135 A Al multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38674N Distribution block 1 pole blue up to 70sqmm up to 175A (Cu) 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu | 135 A Al multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38674PE Distribution block 1 pole green up to 70sqmm up to 175A (Cu) 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 175 A Cu | 135 A Al UL: 175 A Cu | 135 A Al multi wire 1 x 10 - 70 sqmm | 1 x 8 - 2/0 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 50 sqmm | 1 x 8 - 1/0 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

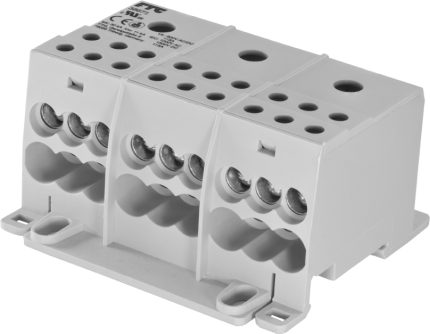

38675 Distribution block 3 pole grey up to 125A (Cu) 7 connections Cu/Al
The three pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu | 90 A Al multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 6 x 2,5 - 16 sqmm | 6 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 6 x 2,5 - 10 sqmm | 6 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng

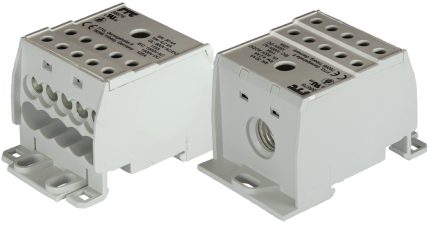

38676 Distribution block 1 pole grey up to 35sqmm up to 125A (Cu) 11 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 125 A Cu | 100 A Al UL: 115 A Cu | 90 A Al multi wire 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 16 sqmm | 10 x 14 - 4 AWG with sleeve 1 x 10 - 35 sqmm | 1 x 8 - 2 AWG 10 x 2,5 - 10 sqmm | 10 x 14 - 6 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
