This is a steel connecting terminal for two flat copper bars of 12 x 5 mm, the connecting screw is a SW 4 allen key and has a tightening torque of 3Nm. The terminal is for a maximum voltage of 690V AC. , eng

The steel connecting terminal is used for cable cross sections up to 120 sqmm and the flat copper bars of 30 x 5 mm or 30 x 10 mm. With the hexagon screw with a slot (SW13) it will be fixied by a tightening torque of 20 - 25 Nm. The terminal is comaptible with different kind of cables: 16 - 120sqmm (single-/multiwire), 16 - 120sqmm (with sleeve) or with 35 - 120 sqmm (sector-shaped conductor). The terminal is for a maximum current of 440A and a voltage of 690V., eng

The brass terminal offers the possibility of several connection cross sections of 20x 1,5 - 16sqmm and 4x 1.5 - 25sqmm (single-/multiwire) or 20x 1,5 - 10sqmm and 4x 1.6-16sqmm (with sleeve). The terminal is for a maximum current of 63A and a voltage of 690V. , eng

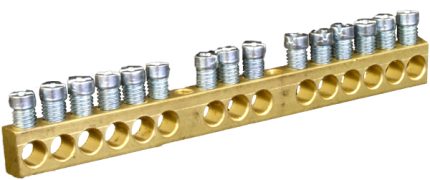

The brass terminal offers the possibility of 15 connections with a cross section of 7x 1,5 - 16sqmm (single-/multiwire) or 7x 1,5 - 10sqmm (with sleeve). The terminal is for a maximum current of 63A and a voltage of 690V. , eng

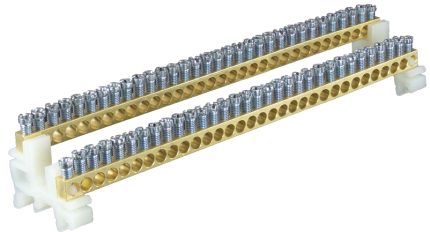

The terminal strip kit is mounted on the DIN rail carrier NPET1. Here it offers on each of two terminal strips 30 connections for either single- / multi-wire conductors with a cross section of 1.5 - 16 sqmm or for conductors with sleeves with a cross-section of 1.5 - 10 sqmm. The conductor is mounted using connecting screws PZ2 with a torque of 2 Nm. For current up to 63A and a voltage of 690V. , eng

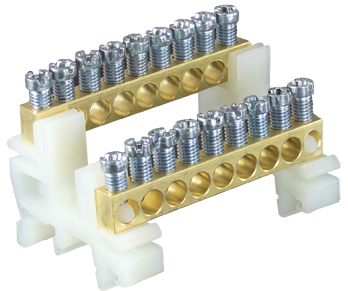

The terminal strip kit is mounted on the DIN rail carrier NPET1. Here it offers on each of two terminal strips 7 connections for either single- / multi-wire conductors with a cross section of 1.5 - 16 sqmm or for conductors with sleeves with a cross-section of 1.5 - 10 sqmm. The conductor is mounted using connecting screws PZ2 with a torque of 2 Nm. For current up to 63A and a voltage of 690V. , eng
