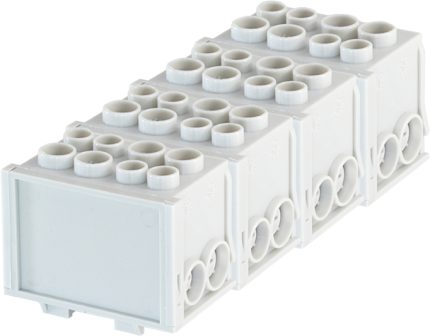

KS704 HLAK 4 pole up to 70sqmm 4x grey 16 connections 160A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

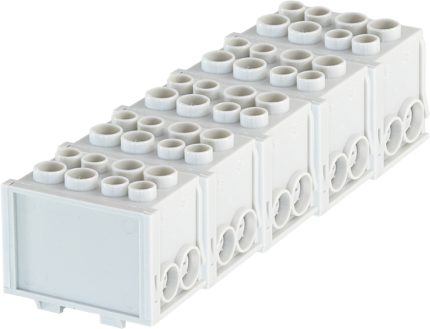

KS705 HLAK 5-polig up to 70sqmm 5x grey 20 connections 160A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

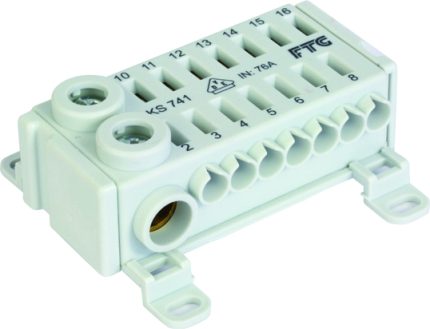

KS741 ECB KS741 grey 2 ingoings 14 outgoings
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng

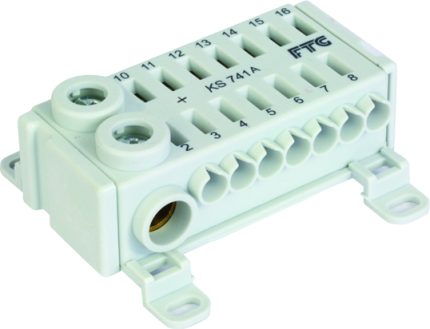

KS741A ECB KS741 grey for DC applications (741A-)
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng
KS741B ECB KS741 grey for DC applications (741B+)
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng

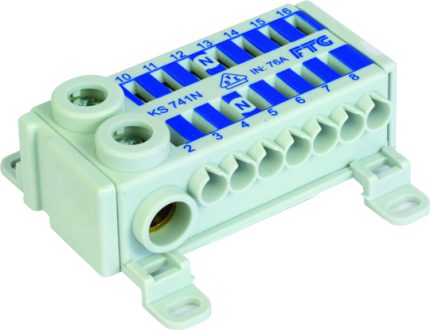

KS741N ECB KS741 blue 2 ingoings 14 outgoings
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng

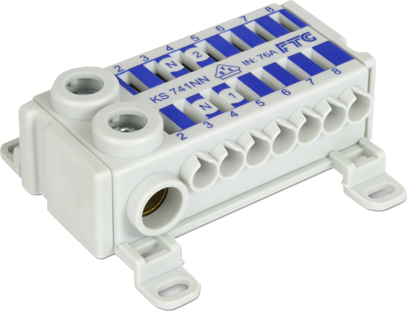

KS741NN ECB KS741 blue blue 2x (1 ingoing and 7 outgoings)
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng
KS741NPE ECB KS741 blue green 2x (1 ingoing and 7 outgoings)
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng

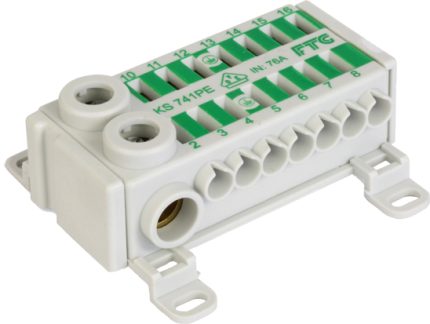

KS741PE ECB KS741 green 2 ingoings 14 outgoings
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng
KS741R ECB KS741 red 2 ingoings 14 outgoings
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng

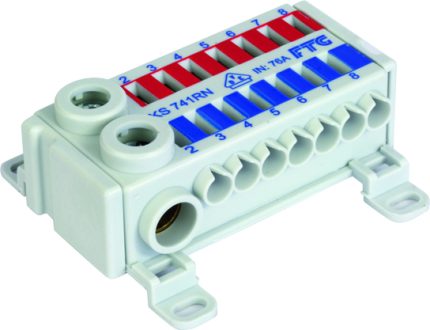

KS741RN ECB KS741 red blue 2x (1 ingoing and 7 outgoings)
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng

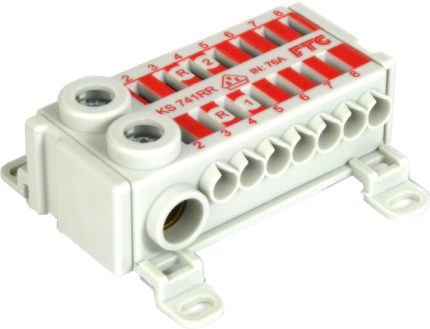

KS741RR ECB KS741 red red 2x (1 ingoing and 7 outgoings)
The Easy Connection Box (ECB) terminal KS741x has been has been available with two screw terminals from 2.5 to 25 sqmm and 14 spring-loaded terminals from 0.5 to 4 sqmm rigid as well as for strands with wire end ferrules. The terminals have been certified according to the regulations of VDE Reg.Nr. 40025904 and have the protection class IP20. A mounting on DIN rail vertical or horizontal is possible. The maximum torque is 2.5 Nm. , eng
