870KL0150 Terminal block blank brass, 46 connections with diverse connection cross sections
The bright brass terminal has a variation of different connection cross sections. Cross sections are 3 x 6 – 50 sqmm, 12 x 1,5 – 25 sqmm and 31 x 1,5 – 10 sqmm (single-/multiwire) or 3 x 6 – 35 sqmm, 12 x 1,5 – 16 sqmm and 31 x 1,5 – 6 sqmm (with sleeve). The terminal is for a maximum current of 630A. , eng
870KL0150S Brass terminal block nickel plated 46 connections with diverse connection cross sections
The nickel-plated brass terminal has a variation of different connection cross sections. Cross sections are 3x 6 - 50 sqmm, 12 x 1,5 – 25 sqmm and 31 x 1,5 – 10 sqmm (single-/multiwire) or 3 x 6 – 35 sqmm, 12 x 1,5 – 16 sqmm and 31 x 1,5 – 6 sqmm (with sleeve). The terminal is for a maximum current of 250A. , eng

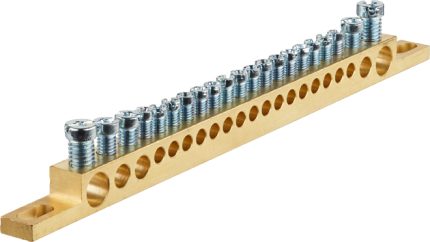

870KL21 Terminal block blank brass,21 connections with diverse connection cross sections
The bright brass terminal has a variation of different connection cross sections. Cross sections are 2 x 6 – 50 sqmm, 3 x 1,5 – 25 sqmm and 16 x 1,5 – 10 sqmm (single-/multiwire) or 2 x 6 – 35 sqmm, 3 x 1,5 – 16 sqmm and 16 x 1,5 – 6 sqmm (with sleeve). The terminal is for a maximum current of 630A. , eng
870KL60 Terminal block blank brass,60 connections with diverse connection cross sections
The bright brass terminal has a variation of different connection cross sections. Cross sections are 1 x 6 – 50 sqmm, 1 x 1,5 – 25 sqmm and 58 x 1,5 – 6 sqmm (single-/multiwire) or 1 x 6 – 35 sqmm, 1 x 1,5 – 16 sqmm und 58 x 1,5 – 4 sqmm (with sleeve). The terminal is for a maximum current of 630A. , eng

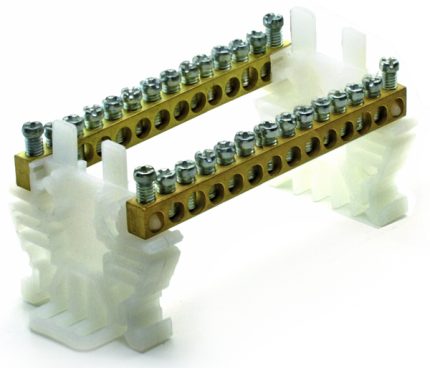

870KLSE12 Modul kit of terminal blocks 2 x 12 connections on DIN rail holder NPET3
The terminal strip kit is mounted on the DIN rail carrier NPET3. Here it offers on each of two terminal strips 12 connections for either single- / multi-wire conductors with a cross section of 1.5 - 16 sqmm or for conductors with sleeves with a cross-section of 1.5 - 10 sqmm. The conductor is mounted using connecting screws PZ2 with a torque of 2 Nm. For current up to 63A and a voltage of 690V. , eng

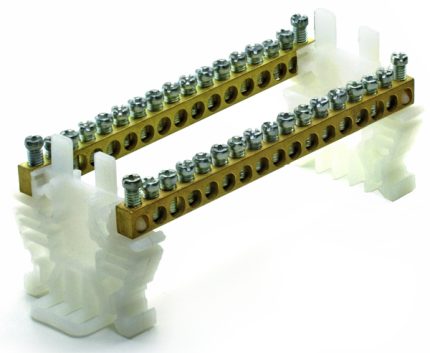

870KLSE15 Modul kit of terminal blocks 2 x 15 connections on DIN rail holder NPET3
The terminal strip kit is mounted on the DIN rail carrier NPET3. Here it offers on each of two terminal strips 15 connections for either single- / multi-wire conductors with a cross section of 1.5 - 16 sqmm or for conductors with sleeves with a cross-section of 1.5 - 10 sqmm. The conductor is mounted using connecting screws PZ2 with a torque of 2 Nm. For current up to 63A and a voltage of 690V. , eng
870KLSE24 Modul kit of terminal blocks 2 x 24 connections on DIN rail holder NPET3
The terminal strip kit is mounted on the DIN rail carrier NPET3. Here it offers on each of two terminal strips 24 connections for either single- / multi-wire conductors with a cross section of 1.5 - 16 sqmm or for conductors with sleeves with a cross-section of 1.5 - 10 sqmm. The conductor is mounted using connecting screws PZ2 with a torque of 2 Nm. For current up to 63A and a voltage of 690V. , eng
870KLSE7 Modul kit of terminal blocks 2 x 7 connections on DIN rail holder NPET3
The terminal strip kit is mounted on the DIN rail carrier NPET3. Here it offers on each of two terminal strips 7 connections for either single- / multi-wire conductors with a cross section of 1.5 - 16 sqmm or for conductors with sleeves with a cross-section of 1.5 - 10 sqmm. The conductor is mounted using connecting screws PZ2 with a torque of 2 Nm. For current up to 63A and a voltage of 690V. , eng
870M Terminal block blank brass, 166 connections

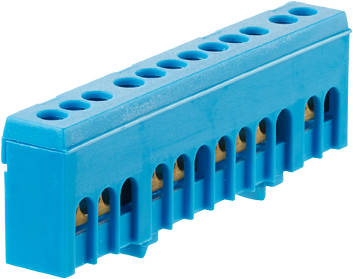

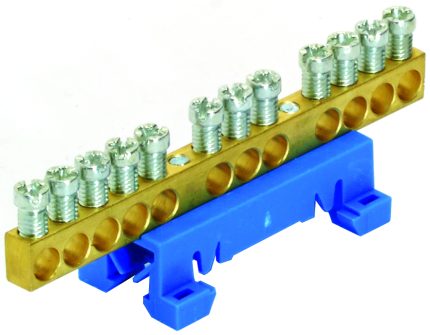

870N-12 Neutral terminal for DIN rail mounting blue 12 connections 63A

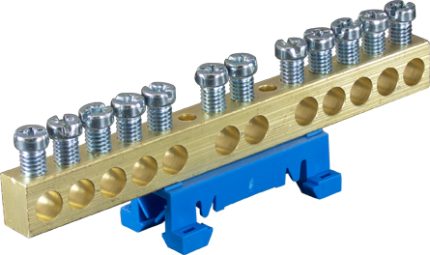

870N-12-16 Neutral and earthing terminal for DIN rail mounting blue 15 connections
