BKS5005 Bow terminal BKS 50sqmm for copper conductors and 5mm copper bars
The steel terminal BKS is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 50sqmm, conductors of 10 - 50 sqmm and sector conductors of 35 - 50sqmm can be connected. The connection screw is PZ3 or SW13 with a tightening torque of 10Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 2 x (3 x 9 x 0.8) 1 x (6 x 9 x 0.8) max. Current 315A max. Voltage 1000V AC / DC, eng

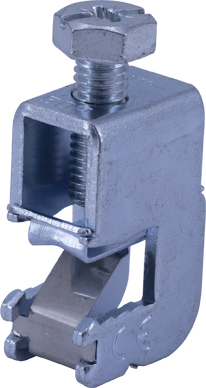

BKS5010 Bow terminal BKS 50sqmm for copper conductors and 10mm copper bars
The steel terminal BKS is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 50sqmm, conductors of 10 - 50 sqmm and sector conductors of 35 - 50sqmm can be connected. The connection screw is PZ3 or SW13 with a tightening torque of 10Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 2 x (3 x 9 x 0.8) 1 x (6 x 9 x 0.8) max. Current 315A max. Voltage 1000V AC / DC, eng
BKS7005 Bow terminal BKS 70sqmm for copper conductors and 5mm copper bars
The steel terminal BKS is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 70sqmm, conductors of 16 - 70 sqmm and sector conductors of 35 - 70 sqmm can be connected. The connection screw is PZ3 or SW13 with a tightening torque of 12Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 2 x (3 x 9 x 0.8) 2 x (6 x 9 x 0.8) 1 x (6 x 13 x 0.5) max. Current 400A max. Voltage 1000V AC / DC, eng

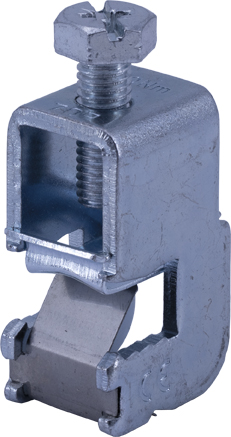

BKS7010 Bow terminal BKS 70sqmm for copper conductors and 10mm copper bars
The steel terminal BKS is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 70sqmm, conductors of 16 - 70 sqmm and sector conductors of 35 - 70 sqmm can be connected. The connection screw is PZ3 or SW13 with a tightening torque of 12Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 2 x (3 x 9 x 0.8) 2 x (6 x 9 x 0.8) 1 x (6 x 13 x 0.5) max. Current 400A max. Voltage 1000V AC / DC
, eng

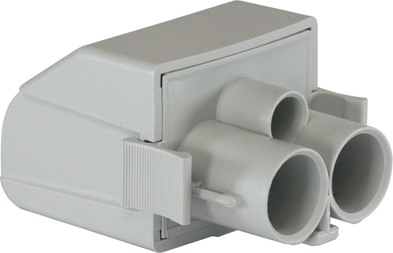

KA352 LPDB connection terminal up to 35sqmmgrey

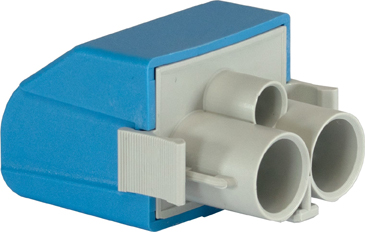

KA352N LPDB connection terminal up to 35sqmmblue

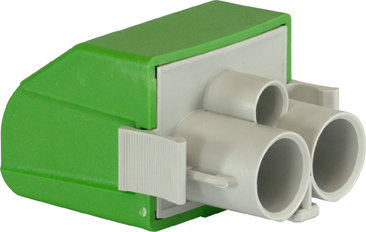

KA352PE LPDB connection terminal up to 35sqmmgreen
KA42 LPDB spring-plug-in terminal 4sqmm Cu IP33
KA42SP LPDB spring-plug-in terminal 4sqmm Cu with protection cover for IP44
KA502 LPDB 3 screw terminal connections grey
The grey connection terminal LPDB is often applied in ring connections for the transmission of currents in street lights, the power supply on campsites or at boat docks. Furthermore, the DIN rail mounting clamps are compatible with the KAH accessory, the DIN rail adapter. U: 690V AC/1000 V DC, IP23: 6-35 sqmm or IP33: 50 sqmm
, eng

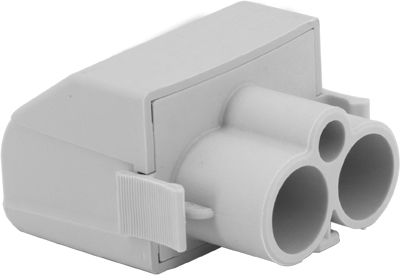

KA502F LPDB connection terminal, touchsafe, 50sqmm, gray
The gray connection terminal LPDB is often used for ring lines for the transmission of currents in street lights, the power supply on campsites or at ship piers. The terminals for DIN rail mounting are also compatible with the KAH accessory, the DIN rail adapter. The terminal offers space for the following conductor cross-sections with screw terminals: solid / stranded: 2 x 6 - 50 mm² and 1 x 1.5 - 10 mm²; with wire end ferrule: 2 x 6 - 35 mm² and 1 x 1.5 - 6 mm²; I: 160A, 125A AL; U: 690V AC; IP: 23: 6-35 mm²; IP33: 50 mm²

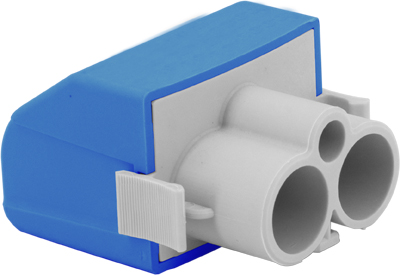

KA502FN LPDB connection terminal, touchsafe, 50sqmm, blue
The blue connection terminal LPDB is often used for ring lines for the transmission of currents in street lights, the power supply on campsites or at ship piers. The terminals for DIN rail mounting are also compatible with the KAH accessory, the DIN rail adapter. The terminal offers space for the following conductor cross-sections with screw terminals: solid / stranded: 2 x 6 - 50 mm² and 1 x 1.5 - 10 mm²; with wire end ferrule: 2 x 6 - 35 mm² and 1 x 1.5 - 6 mm²; I: 160A, 125A AL; U: 690V AC; IP: 23: 6-35 mm²; IP33: 50 mm²
