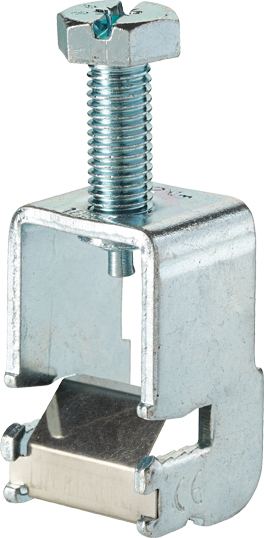

BKN18505 Bow terminal BKN 185sqmm for 5mm for copper or aluminium bars
The steel terminal BKN is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 185sqmm, conductors (single / multi-wire or with ferrule) of 50 - 185sqmm and sector conductors of 50 - 185sqmm can be connected. The connection screw is SW 17 or PZ3 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (6 x 20 x 1) or 1 x (10 x 20 x 1) with a max. Current 500A and max. Voltage 1000V AC / DC., eng

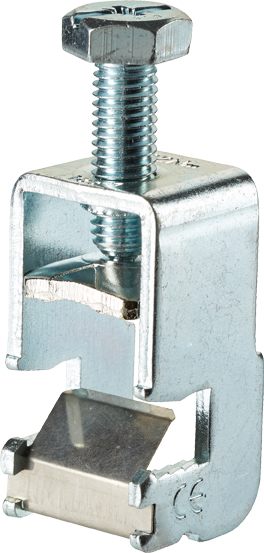

BKN18510 Bow terminal BKN 185sqmm for 10mm for copper or aluminium bars
The steel terminal BKN is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 185sqmm, conductors (single / multi-wire or with ferrule) of 50 - 185sqmm and sector conductors of 50 - 185sqmm can be connected. The connection screw is SW 17 or PZ3 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (6 x 20 x 1) or 1 x (10 x 20 x 1) with a max. Current 500A and max. Voltage 1000V AC / DC., eng

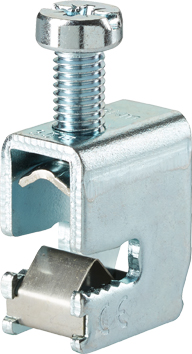

BKN3505 Bow terminal BKN 35sqmm for 5mm for copper or aluminium bars
The steel terminal BKN is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 35sqmm, conductors (single / multi-wire or with wire end sleeve) of 4 - 35sqmm and sector conductor of 35sqmm can be connected. The connection screw is SW 13 or PZ2 with a tightening torque of 6Nm. Laminated copper busbars measuring 1 x (3 x 9 x 0.8mm) or 1 x (6 x 9 x 0.8mm) can be connected. Max. Current 270A max. Voltage 1000V AC / DC, eng

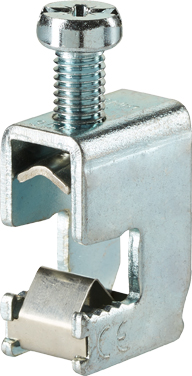

BKN3510 Bow terminal BKN 35sqmm for 10mm for copper or aluminium bars
The steel terminal BKN is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 35sqmm, conductors (single / multi-wire or with wire end sleeve) of 4 - 35sqmm and sector conductor of 35sqmm can be connected. The connection screw is SW 13 or PZ2 with a tightening torque of 6Nm. Laminated copper busbars measuring 1 x (3 x 9 x 0.8mm) or 1 x (6 x 9 x 0.8mm) can be connected. Max. Current 270A max. Voltage 1000V AC / DC, eng

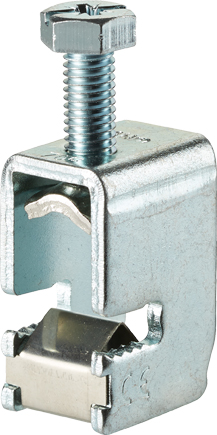

BKN7005 Bow terminal BKN 70sqmm for 5mm for copper or aluminium bars
The steel terminal BKN is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 70sqmm, conductors (single / multi-wire or with wire end sleeve) of 16 - 70sqmm and sector conductors of 35 - 70sqmm can be connected. The connection screw is SW 13 or PZ3 with a tightening torque of 12Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 2 x (3 x 9 x 0.8), 1 x (6 x 9 x 0.8), 2 x (6 x 9 x 0.8) or 1 x (6 x 13 x 0.5) with a max. Current 400A and max. Voltage 1000V AC / DC., eng

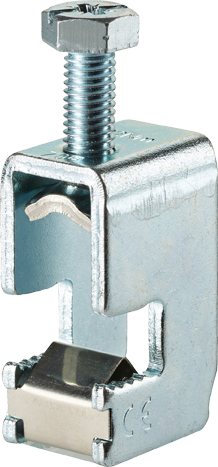

BKN7010 Bow terminal BKN 70sqmm for 10mm for copper or aluminium bars
The steel terminal BKN is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 70sqmm, conductors (single / multi-wire or with wire end sleeve) of 16 - 70sqmm and sector conductors of 35 - 70sqmm can be connected. The connection screw is SW 13 or PZ3 with a tightening torque of 12Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 2 x (3 x 9 x 0.8), 1 x (6 x 9 x 0.8), 2 x (6 x 9 x 0.8) or 1 x (6 x 13 x 0.5) with a max. Current 400A and max. Voltage 1000V AC / DC., eng

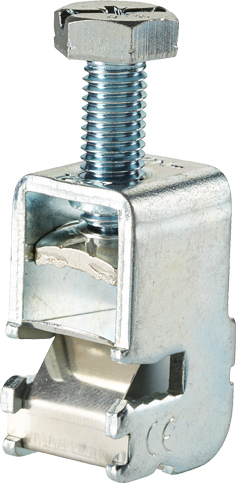

BKNA12005 Bow terminal BKNA 120sqmm for 5mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 16-120 sqmm
Screw connection: PZ3 or SW17 with a torque of 22Nm, eng

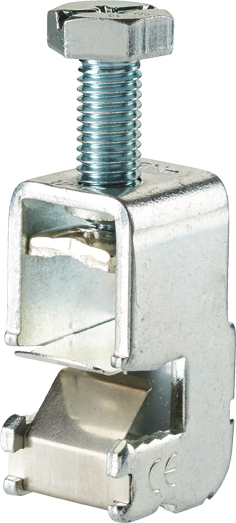

BKNA12010 Bow terminal BKNA 120sqmm for 10mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 16-120 sqmm
Screw connection: PZ3 or SW17 with a torque of 22Nm, eng
BKNA1605 Bow terminal BKNA 16sqmm for 5mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 1.5-16 sqmm
Screw connection: PZ2 with a torque of 3Nm, eng
BKNA1610 Bow terminal BKNA 16sqmm for 10mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 1.5-16 sqmm
Screw connection: PZ2 with a torque of 3Nm, eng

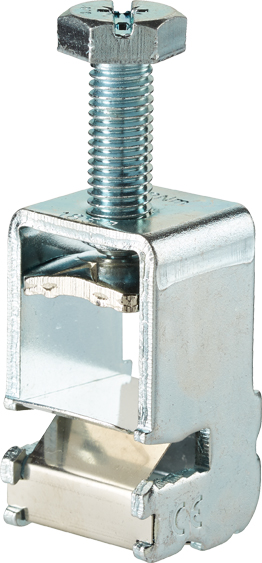

BKNA18505 Bow terminal BKNA 185sqmm for 5mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 50-185 sqmm
Screw connection: PZ3 or SW17 with a torque of 22Nm, eng

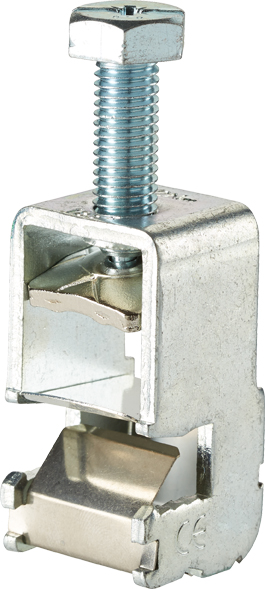

BKNA18510 Bow terminal BKNA 185sqmm for 10mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 50-185 sqmm
Screw connection: PZ3 or SW17 with a torque of 22Nm, eng
