KS351PED HLAK 1 pole up to 35sqmm 8 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS351R HLAK 1 pole up to 35sqmm 1x red 4 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

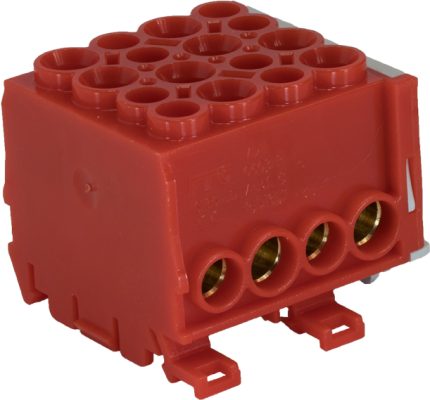

KS351RD HLAK 1 pole up to 35sqmm 1x red double 8 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS351S HLAK 1 pole up to 35sqmm 4 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

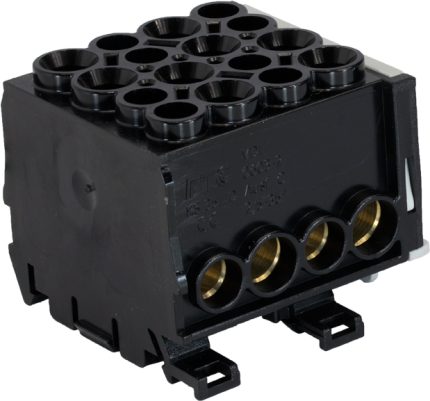

KS351SD HLAK 1 pole up to 35sqmm 8 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS352 HLAK 2 pole up to 35sqmm 2x grey 8 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS352NDPED HLAK 2 pole up to 35sqmm 16 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS352NPE HLAK 2 pole up to 35sqmm 8 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

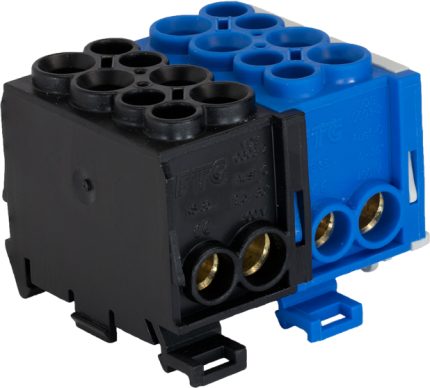

KS352NR HLAK 2 pole up to 35sqmm 8 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

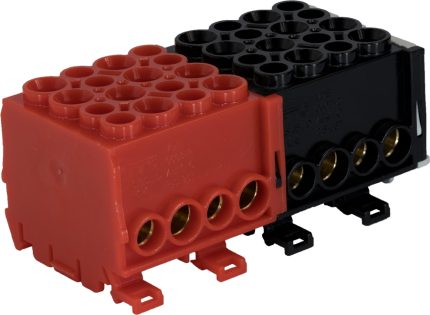

KS352RDSD HLAK 2 pole up to 35sqmm16 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

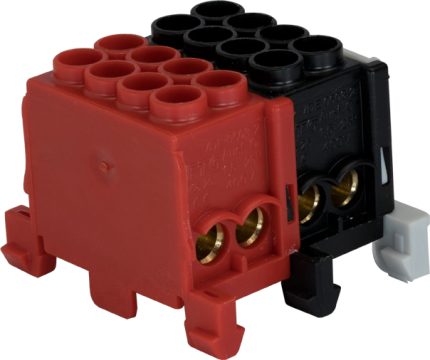

KS352RS HLAK 2 pole up to 35sqmm 8 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS353 HLAK 3 pole up to 35sqmm 3x grey 12 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
