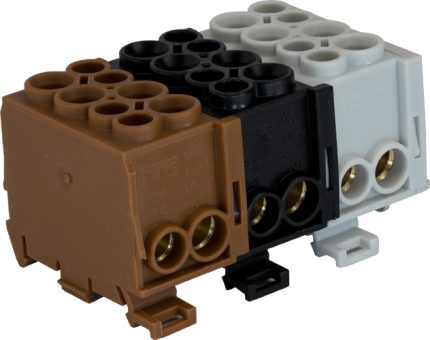

KS353C HLAK 3 pole up to 35sqmm version C 12 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

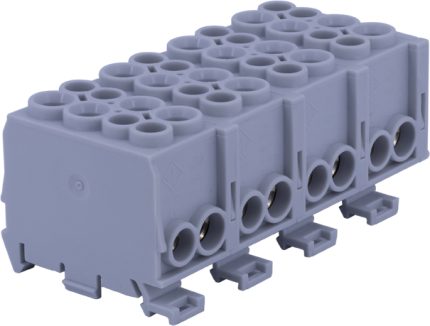

KS354 HLAK 4 pole up to 35sqmm 4x grey 16 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS354N HLAK 4 pole up to 35sqmm 16 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS354ND HLAK 4 pole up to 35sqmm 20 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

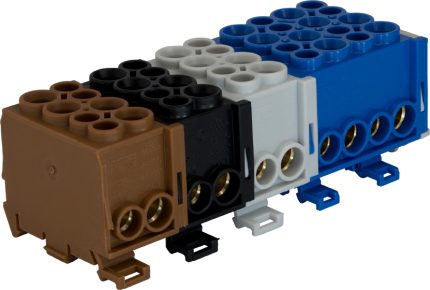

KS354NDC HLAK 4 pole up to 35sqmm version C 20 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS355 HLAK 5-polig up to 35sqmm 5x grey 20 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

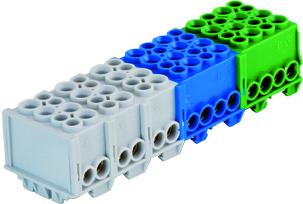

KS355NDPED HLAK 5-polig up to 35sqmm 28 connections
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
KS355NPE HLAK 5-polig up to 35sqmm 20 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

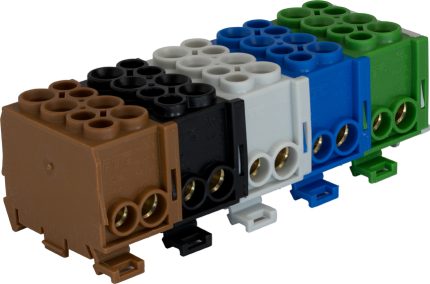

KS355NPEC HLAK 5-polig up to 35sqmm version C 20 connections 100A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

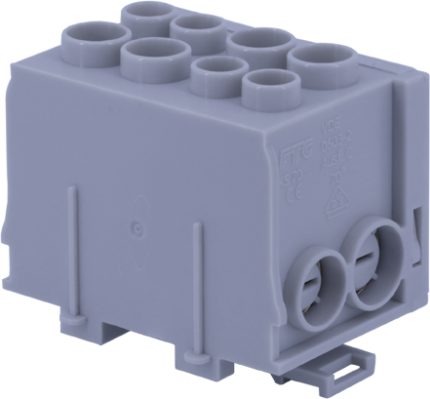

KS701 HLAK 1 pole up to 70sqmm 1x grey 4 connections 160A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

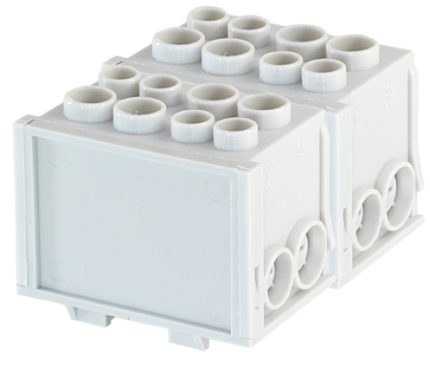

KS702 HLAK 2 pole up to 70sqmm 2x grey 8 connections 160A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng

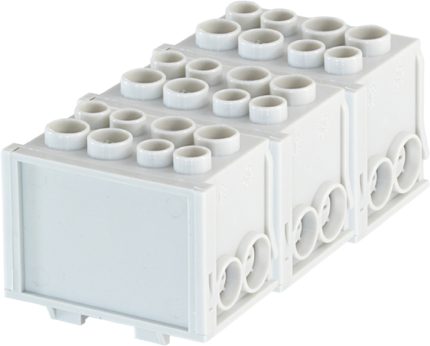

KS703 HLAK 3 pole up to 70sqmm 3x grey 12 connections 160A
The main branch terminal is touch safe and completely closed. Thanks to a universal quick-release, the terminal can be mounted horizontally and vertically on DIN mounting rails. The insulating body is made of high creep resistant polyamide and has the protection class IP20. The HLAKs are in accordance with DIN VDE 0603-2, amongst others manufactured with the design C and can be used for a maximum voltage of 400 V according to IEC. The clamps are made of the material bright brass and the conductors are connected with a max. torque of 3 Nm mounted.
, eng
